ENGINES

KAVAN 50 cc FOUR CYCLE TWIN
Absolutely the finest quality...


The Kavan 3 Cubic Inch is one of the most outstanding engines available. Truly superb casting and impeccable German workmanship provide you a true masterpiece.

The FK50 is a scale version of the world famous Continental engine that was used in many popular early light aircraft. This alternate firing 4 cycle twin is virtually vibration free and extremely fuel efficient.

The FK50 is the only model engine made with a "wet sump" oil system with an internal oil pump. The lowest or no oil content glow fuel can be used resulting in the best possible combustion mixture. Also available in ignition version with a two magnet electronic pick up system for advancing and retarding of spark. This allows an excellent low speed idle and reduces possibility of kick back during starting.

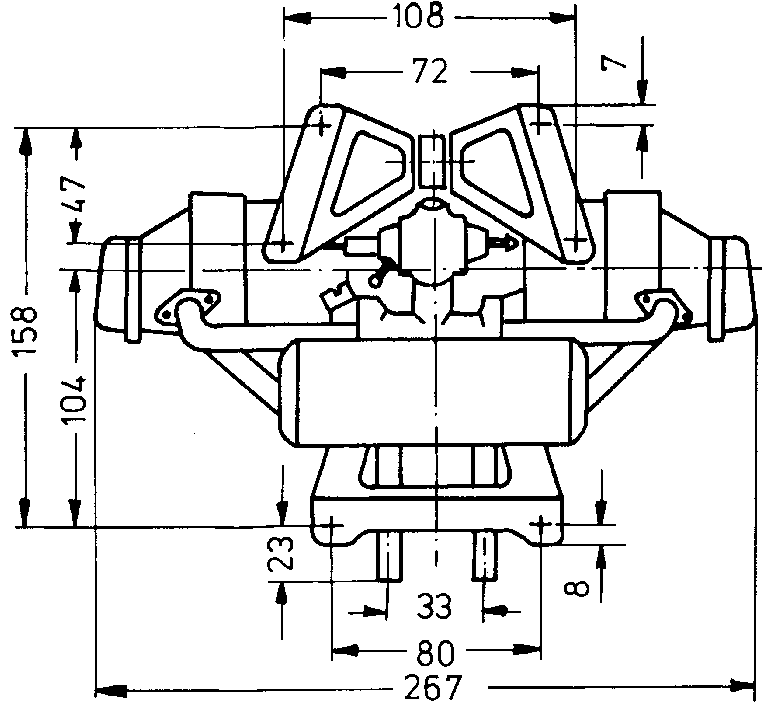

see KAVAN engines line drawings & dimensions

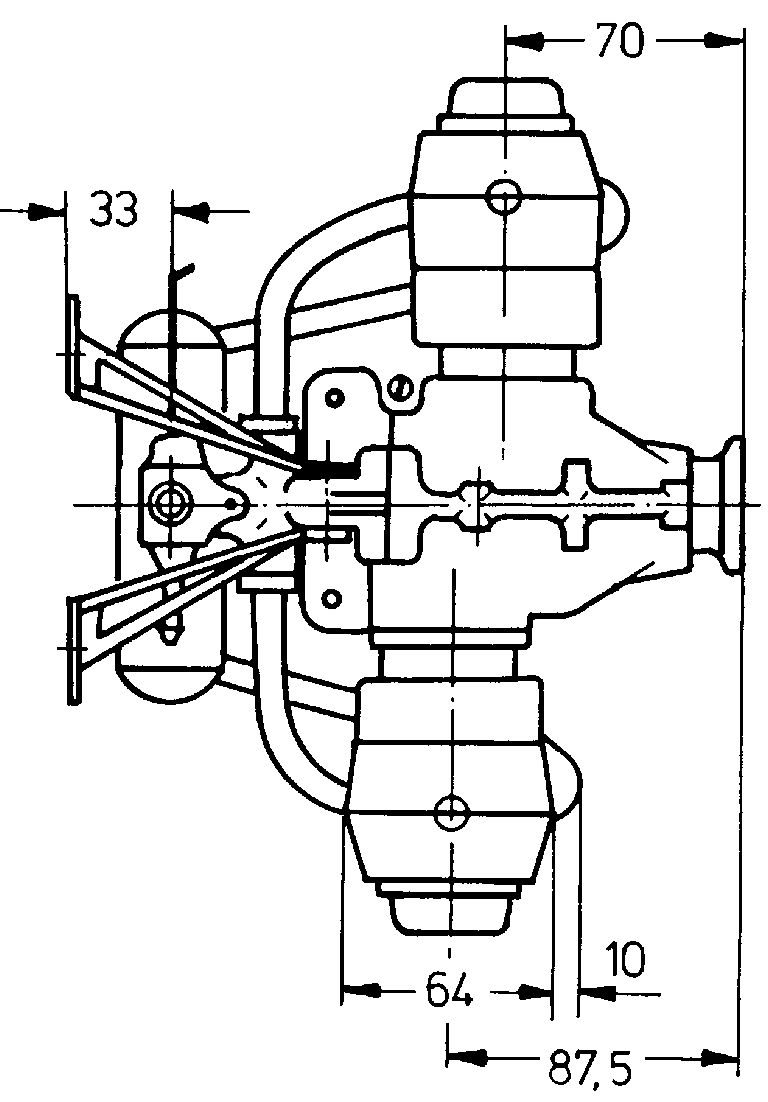

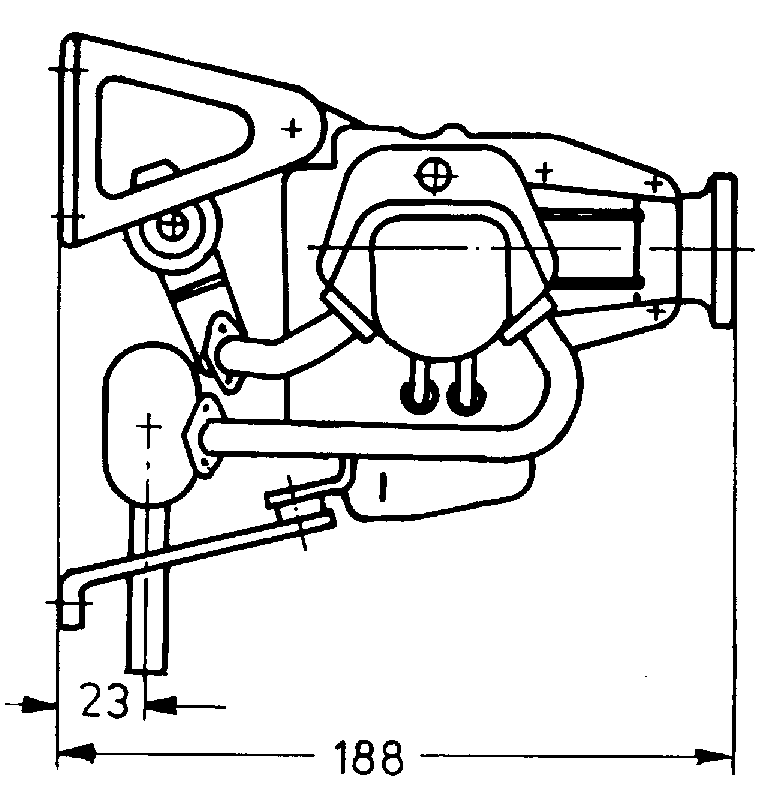

top view  •  side view  •  back view  •  exploded view

SPECIFICATIONS
GLOW
IGNITION
Displacement 50ccm / 3cu. in. Maximum RPM

8,800

9,200

Induction System 4 cycle o.h.v Idle RPM

1,600

1,400

Bore 34 mm / 1.34" Horsepower

4.6

4.4

Stroke 28 mm / 1.10" Weight

2,450 gr

2,600 gr

Prop Size 20x10 (depending on model) Weight

5.40 lbs

5.73 lbs

Fuel Consumption 500 ccm / 16 oz / 20 min Retail Price

$2395.00

$2795.00

MECOA PRICE

$ 1649.00

$ 1849.00
